PROJECT CASE · MYANMAR · PRIVATE VILLA POOL

26.2 m Residential Acrylic Pool Wall in Myanmar

PG Acrylic project case for a private-villa swimming pool in Myanmar: a transparent acrylic wall system with a total length of 26,200 mm, a panel height of 1,042 mm, 100 mm panel thickness, three panels, and on-site polymerization bonding.

Request a Quote Back to Installed Projects

Myanmar Private villa swimming pool 26,200 mm total wall-system length 1,042 mm panel height 100 mm panel thickness 3 panels On-site polymerization bonding

PROJECT INTRODUCTION

Private-villa pool wall assembled from three acrylic panels

This project records a long transparent acrylic pool wall for a private villa in Myanmar. The 26.2 m dimension is the total transparent wall-system length. It is not the length of one individual panel.

Project context: The photographs below show the wall during installation, construction protection and water-filled conditions for the same villa pool.

PROJECT SPECIFICATIONS

Project specifications for this Myanmar pool wall

The table summarizes the wall-system dimensions, panel count and joining method recorded for this private villa swimming pool.

Location	Myanmar
Application	Private villa swimming pool
Total transparent acrylic wall-system length	26,200 mm (26.2 m total wall-system length)
Panel height	1,042 mm
Panel thickness	100 mm
Panel count	3
Joining method	On-site polymerization bonding

THREE-PANEL WALL CONFIGURATION

The 26.2 m length is the complete wall system

The wall was formed from three acrylic panels. The 26,200 mm figure refers to the total transparent acrylic wall-system length, not a single-panel length.

System length note: For comparison or early planning, treat 26.2 m as the overall transparent wall-system length.

PROJECT PHOTOGRAPHS

Installation, construction and water-filled conditions

The images below show the wall during construction, temporary protection and water-filled conditions. Captions describe the visible site context in each photograph.

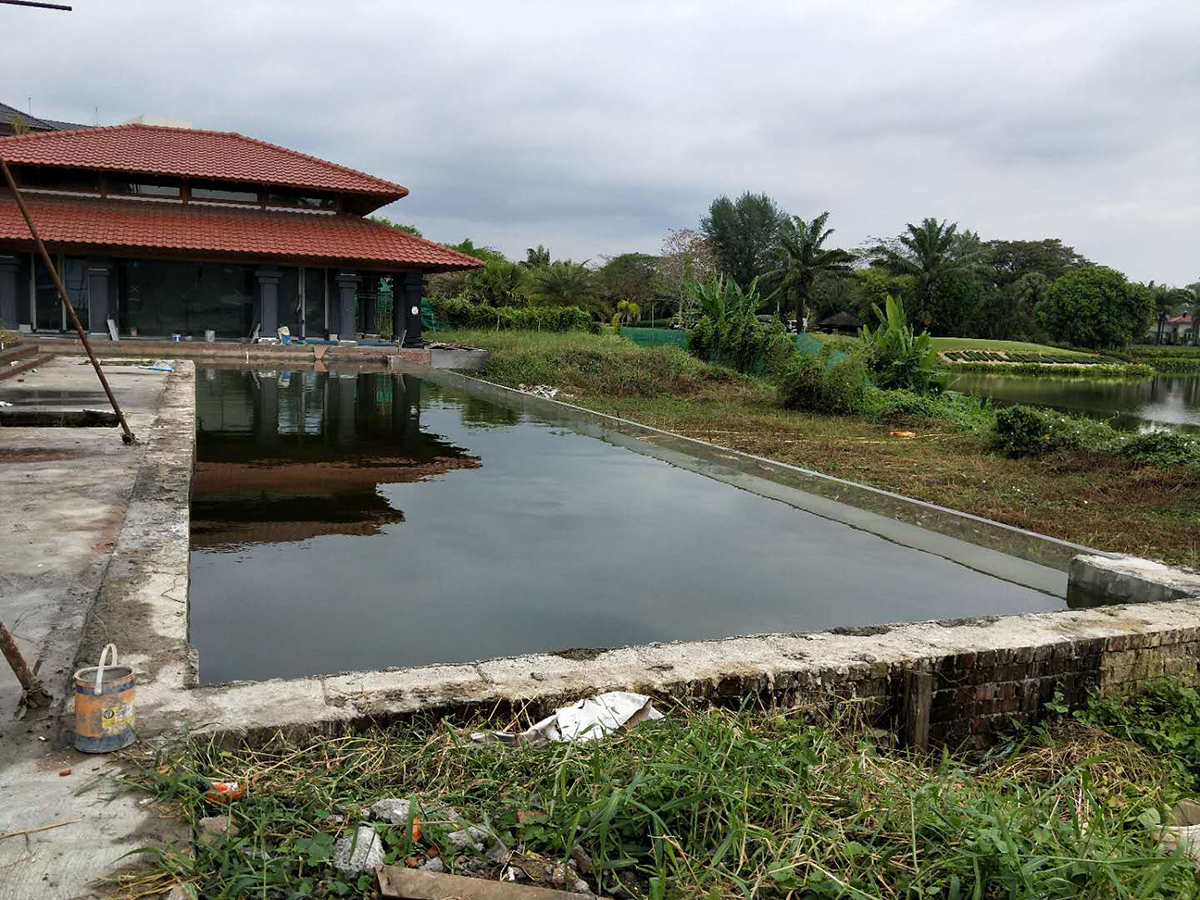

Private villa swimming pool in Myanmar during construction with a long transparent acrylic pool wall and water in the pool — Overview of the private-villa pool during construction, showing the long pool wall and water-filled condition.

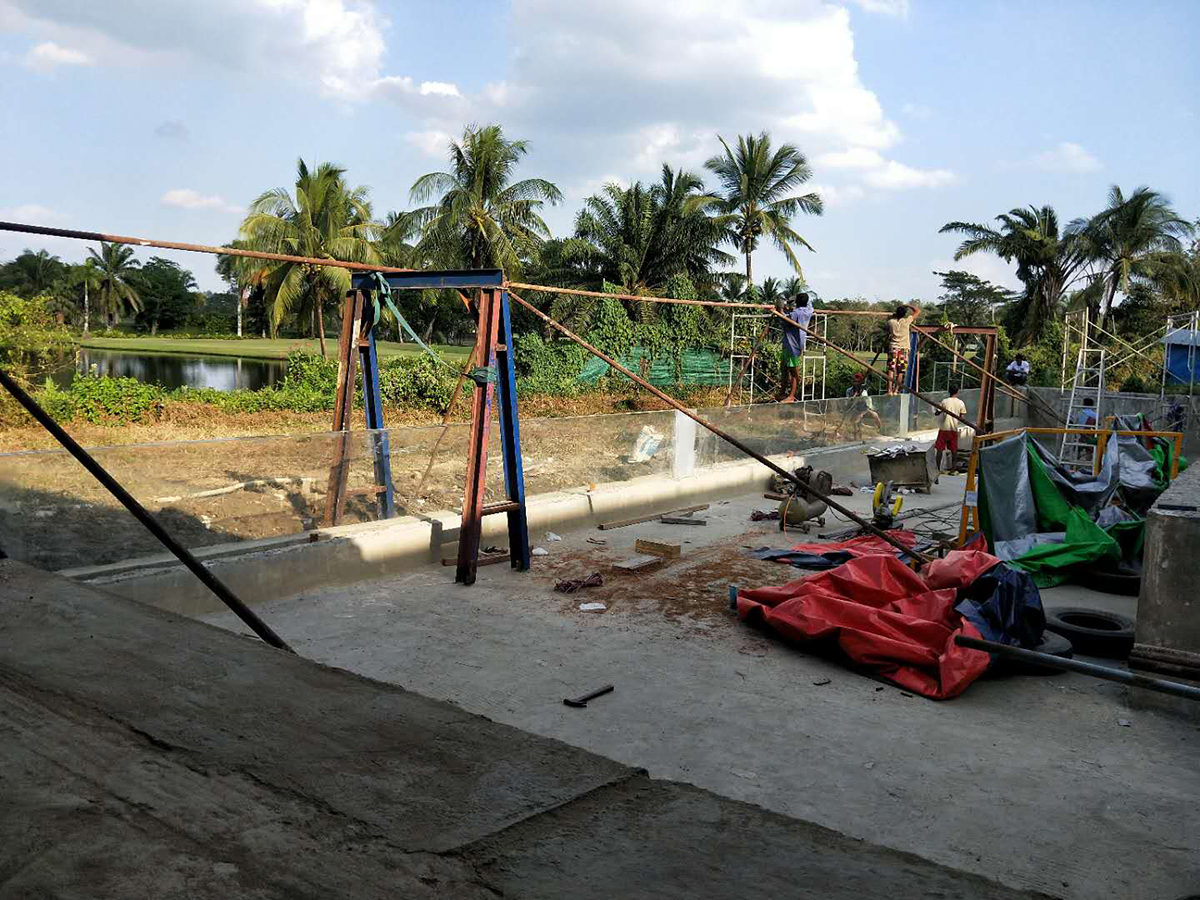

Installation-stage view of the Myanmar acrylic pool wall with temporary lifting support and workers on site — Installation-stage view with temporary lifting support, workers on site and the long acrylic wall line visible.

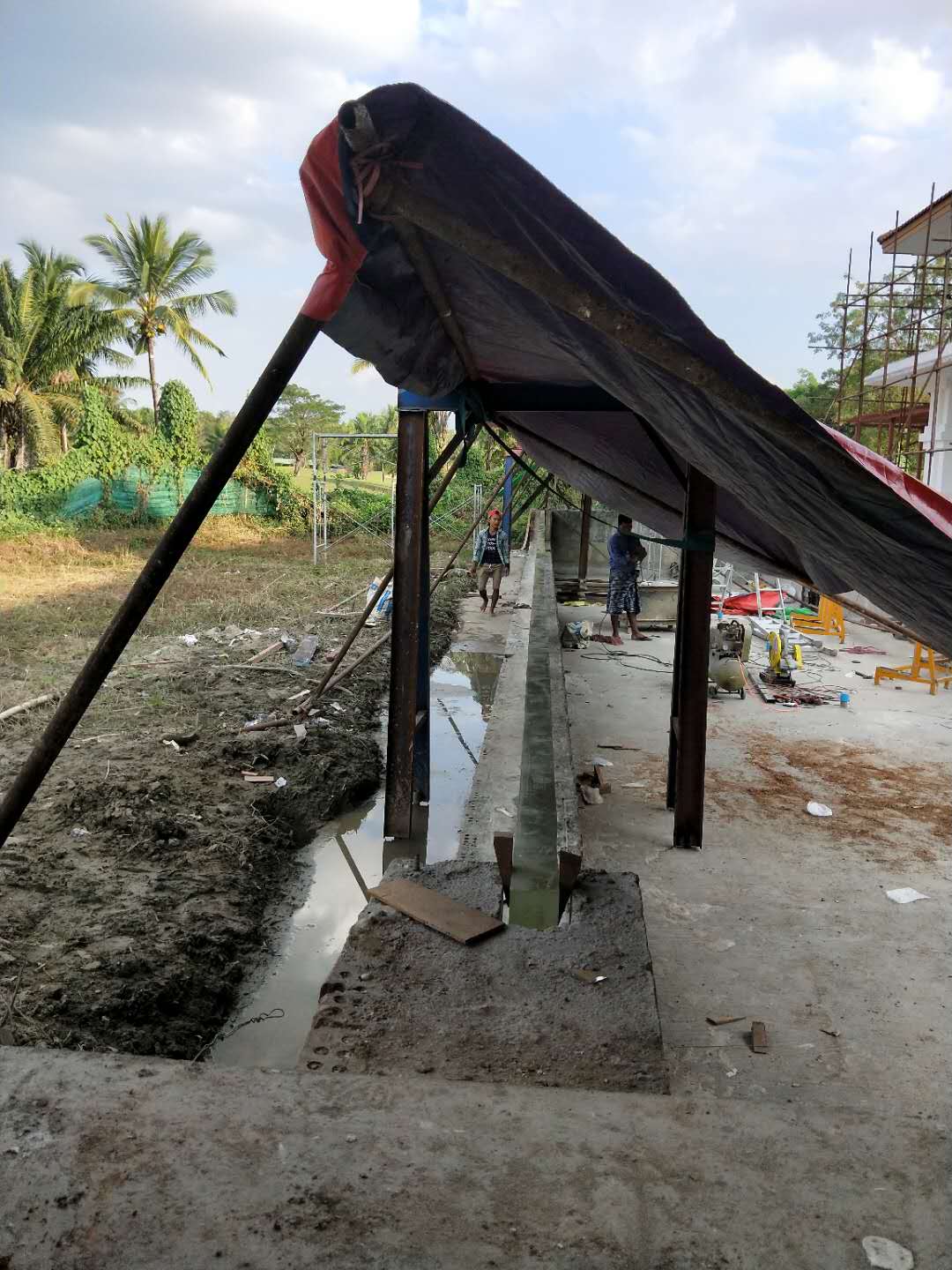

Temporary protective canopy over a long acrylic pool wall during construction in Myanmar — Temporary protection over the acrylic pool wall during construction.

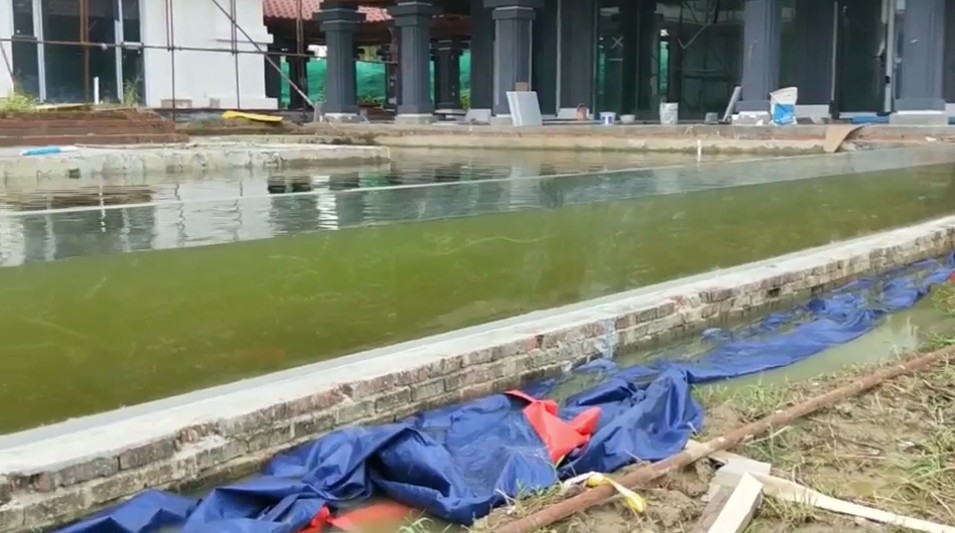

Water-filled condition of the long transparent acrylic pool wall in Myanmar with construction materials nearby — Water-filled condition of the long transparent acrylic pool wall, with construction materials still visible around the pool.

ON-SITE POLYMERIZATION BONDING

Joining method for the three-panel wall

The three 100 mm acrylic panels were joined on site using polymerization bonding to form the 26.2 m total transparent wall system.

Total transparent wall-system length: 26,200 mm.
Panel height: 1,042 mm.
Panel thickness: 100 mm.
Panel count: three.
Joining method: on-site polymerization bonding.

ABOUT THIS REFERENCE

How to read this project case

This reference shows one private-villa pool wall in Myanmar. Similar pool walls still require review of opening size, water depth, support conditions, interface details and installation conditions.

Planning a transparent acrylic pool wall? Send the opening dimensions, water depth, support details and any drawings so PG Acrylic can review the project conditions.
